The Microscope Parts and Use Name_____ Period_____ Historians credit the invention of the compound microscope to the Dutch spectacle maker Zacharias Janssen around the year 1590. Diagram of parts of a microscope.

Parts And Functions Of A Microscope

Revolving nosepiece Rotates to allow use of different power objectives.

. Parts Of Rotary Microtome And Their Functions 40 Pages Solution Doc 6mb - Updated 2021. The entire microscope is handled by a strong and curved structure known as the arm. There are three structural parts of the microscope ie.

They use lenses to focus light on the specimen magnifying it thus producing an image. The lens the viewer looks through to see the specimen. Objective - The lens that is directly above the stage.

Never force the microscope parts to work. The parts of the microscope that are located above the base but below the stage are called the substage assembly. A microscope is a tool used by biologists to magnify and observe very small structures.

Give students a slide from the common things set each student will practice focusing and changing objectives. Eye piece lens contains a magnification. Condenser - Focuses the ray of light through the specimen.

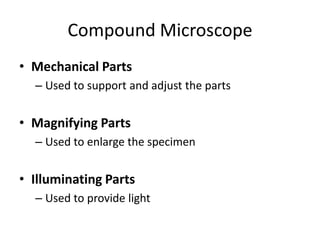

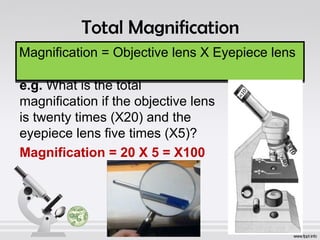

A light microscope is a biology laboratory instrument or tool that uses visible light to detect and magnify very small objects and enlarge them. The eyepiece usually contains a 10X or 15X power lens. Compound Microscope Mechanical Parts Used to support and adjust the parts Magnifying Parts Used to enlarge the specimen Illuminating Parts Used to provide light 5.

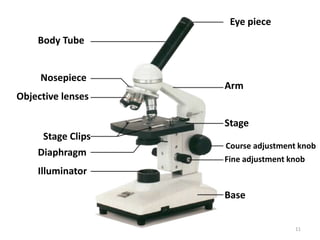

Students will be identifying the parts on the microscopes at their desks as we go along and what their functions are. Microscope Notes Parts of the Microscope Coarse adjustment knob - Focuses the image under low power usually the bigger knob Fine adjustment knob -Sharpens the image under all powers usually the smaller knob Arm - supports the body tube and is used to carry the microscope. Here are the important compound microscope parts.

Always store the microscope in low power objective. This stands by resting on the base and supports the stage. It is a vertical projection.

Also it connects the eyepieces to the objective lenses. Stage clips hold the slides in place. It also carries microscopic illuminators.

The flat platform that supports the slides. The following are the parts of microscope-. Eyepiece ocular lens.

Take all slides off the stage prior to storage. Light Microscope Simple uses a single lens Compound uses a set of lenses or lens systems 3. 3 Parts of the Microscope The main parts of the microscope are the eye-pieces microscope tube nose-piece objective mechanical stage condenser coarse and fine focusing knobs and light source.

The knife is fixed with its edge fixed upwards and the object is moved against the knife rising and falling vertically. 872018 3 Compound Microscope. The specimen is normally placed close to the microscopic lens.

Useful as a means to change focus on one eyepiece so as to correct for any difference in vision between your two eyes. Parts of a eyepiece arm stageclips nosepiece focusing knobs illuminator stage objective lenses head base Label the parts of the microscope. Use lens cleaners and paper both before and after use.

Eyepiece is the lens present at the top and is used to see the objects. Never dismantle the microscope. Jessie Duke September 02 2021.

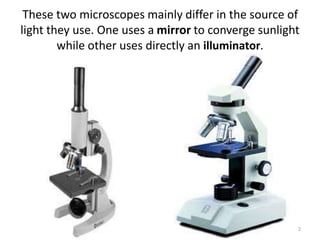

Light microscope Parts of microscope Illuminator - This is the light source located below the specimen. Main Microscope Parts and Functions. Microscope Parts and Functions Microscope One or more lenses that makes an enlarged image of an object.

Head base and arm. 872018 2 Simple Compound Stereoscopic Electron Simple Microscope Similar to a magnifying glass and has only one lens. Parts and Functions of a Compound Microscope 2.

Up to 24 cash back Parts and Function of the Compound Light Microscope Objective lenses Focuses and magnifies light coming through the slide. In TEM the samples image is formed by the interaction between the transmitted electron beam and sample. Introduction to the Microscope Care Parts Focusing This is the exact version of the microscope used in class.

When focusing the microscope be careful that the. Simple Light Microscope 4. Interactive video showing typical adjustments that can be made on the substage assembly.

It is a U-shaped structure and supports the entire weight of the compound microscope. Eyepiece or ocular lens. 31 EYE-PIECE MICROSCOPE TUBE OBJECTIVE MECHANICAL STAGE NOSE-PIECE CONDENSER ILLUMINATOR COARSE FOCUSING KNOB FINE FOCUSING KNOB STAND SLIDE.

A Transmission Electron Microscope can create a much higher resolution and magnified image than a light microscope because of the shorter wavelength of the electron as compared to photons. The upper part of the microscope houses the eyepiece and objective lenses. Parts and function of microscope pdf - Difference between atomic mass and atomic weight pdf Before purchasing or using a microscope it is important to know the functions of each part.

The compound microscope uses lenses and light to enlarge the image and is. Stage - The fixed stage is a horizontal platform that holds the specimen. 65 pages parts of rotary microtome and their functions 23mb.

Optical parts A Mechanical Parts of a Compound Microscope. Where the eyepieces are dropped in. The substage assembly includes the condenser the lower polarizer light filters and diaphragms.

Head This is also known as the body it carries the optical parts in the upper part of the microscope. The lens at the top that you look through. THE MICROSCOPE PARTS AND FUNCTIONS WHAT IS A MICROSCOPE.

You can use the word bank below to fill in the blanks or cut and paste the words at the bottom. Base It acts as microscopes support.
